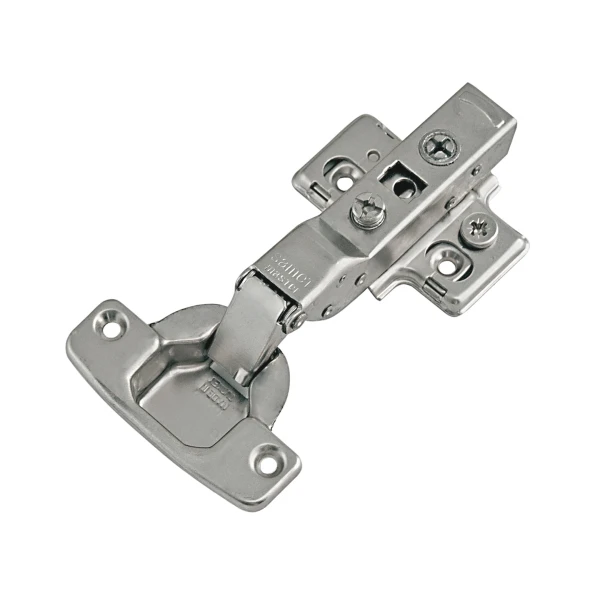

Hinge MASTER 3D 110° p.z.k., with smooth closing and clip
Catalog №: 11PS.5213.3D.MASTER
2,43 €
110 degree opening angle
Integrated soft close mechanism
Easy 3D adjustment system
1
Product Description
Opening angle Adjustment Type Door thickness (mm) Cabinet angle Quantity in package 110° 3D Ejector hinge 16 – 26 Standard 90° 200 K, mm 3 4 5 6 7 D, mm (at H=5) 7 8 9 10 11 H – plate D – front closed edge K – distance to the cup K, mm 3 4 5 6 7 D, mm (at H=5) 7 8 9 10 11 H – plate
Technical characteristics
| Product Code | 11PS.5213.3D MASTER |
|---|---|
| Opening Angle | 110 degrees |
| Adjustment | 3D |
| Door Thickness | 16 - 26 mm |
| Cabinet Angle | 90 degrees |
See also
Decorative Hinge Head Cover
0,06 €
View Product
Hinge ECO 110° p.z.c.
0,28 €
View Product

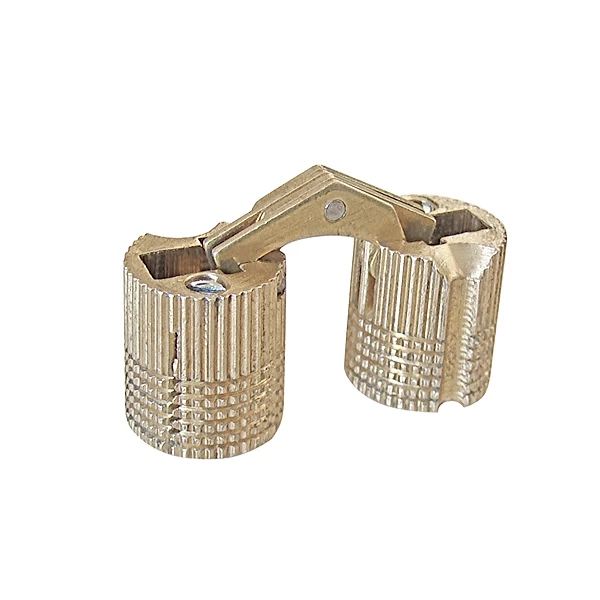

Concealed Barrel Hinge for Furniture
1,91 €
View Product
Hinge MASTER 3D 95° o.k. smooth closing and clip for Decofix door profile
3,05 €
View Product
Decorative Hinge Arm Cover Cap
0,06 €
View Product

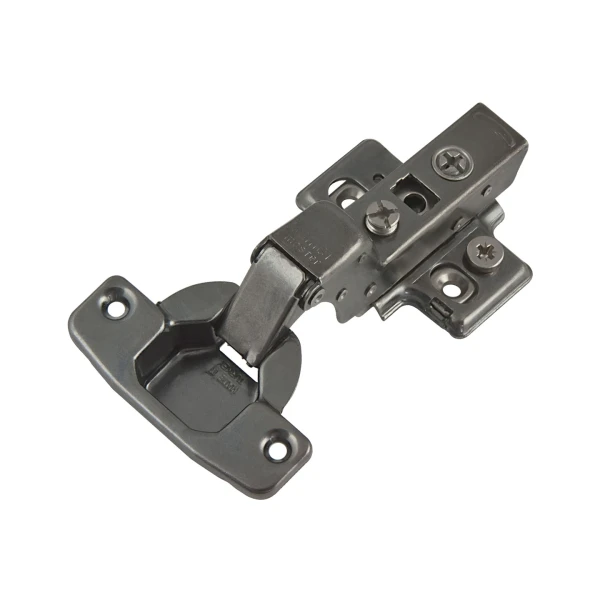

Hinge MASTER black 110° 3D o.k., with smooth closing and clip
