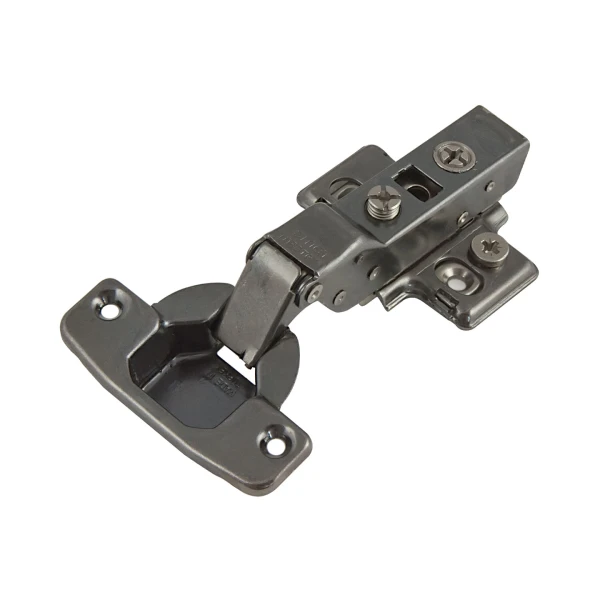

Hinge MASTER black 110° 3D p.z.k., with smooth closing and clip
Catalog №: 11PS.5513.3D
2,04 €
110 degree opening angle
Integrated soft-close mechanism
Easy 3D adjustment and clip-on installation
1
Product Description
Opening angle Adjustment Type Door thickness (mm) Cabinet angle Quantity per package 110° 3D Ejector hinge 16 – 26 Standard 90° 200 Hinge caps are available separately. K, mm 3 4 5 6 7 D, mm (at H=5) 7 8 9 10 11 H – plate height D – front closed edge K – distance to the cup H – plate height K – distance to the cup
Technical characteristics
| Product Code | 11PS.5513.3D |
|---|---|
| Opening Angle | 110° |
| Adjustment | 3D |
| Hinge Type | Half-overlay |
| Door Thickness | 16 - 26 mm |
| Cabinet Angle | 90° |
See also
Master Hinge Head Decorative Cover - Satin Finish
0,17 €
View Product

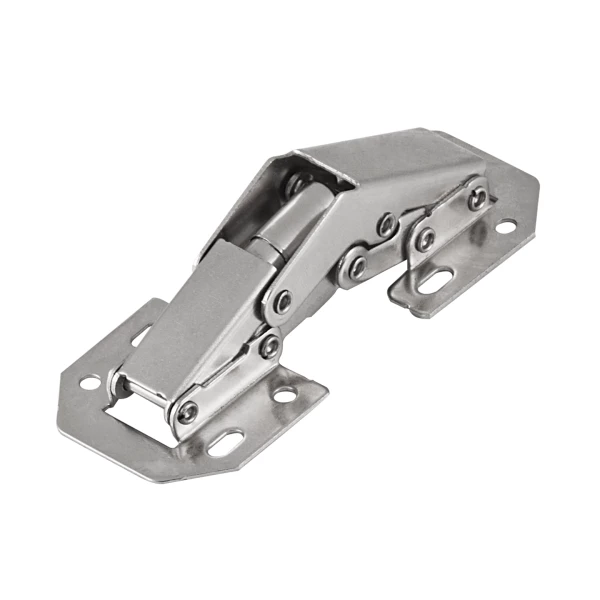

90 Degree Non-Mortise Hinge for Cabinet Doors
0,69 €
View Product
Hinge 125° 2D s.k. with smooth and clip
2,40 €
View Product

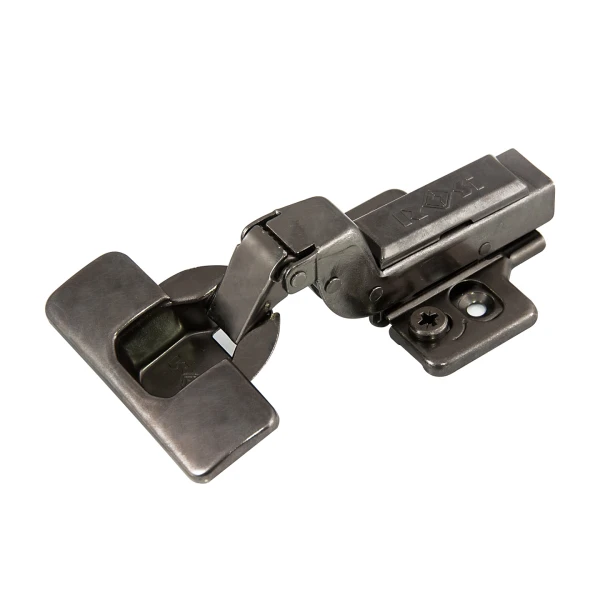

Hinge black MAXI 110° 3D o.k., with smooth closing and clip, set with caps
1,83 €
View Product
Glass Door Hinge - Standard 90 Degree Overlay
0,87 €
View Product

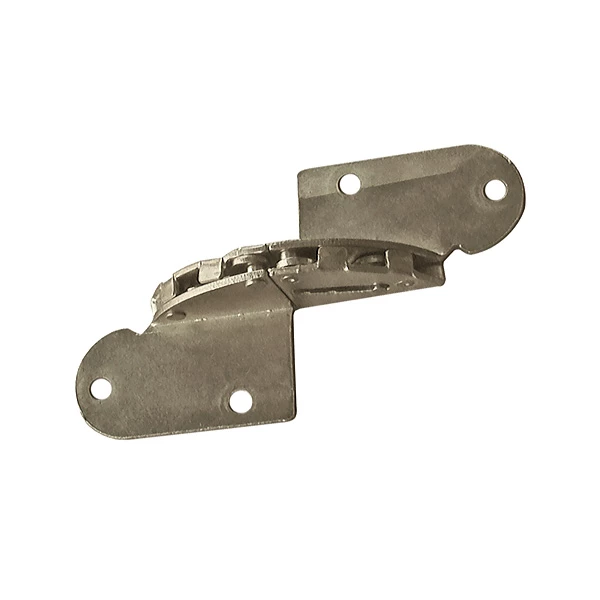

Folding Door Hinge - Chrome Finish
0,83 €
View Product

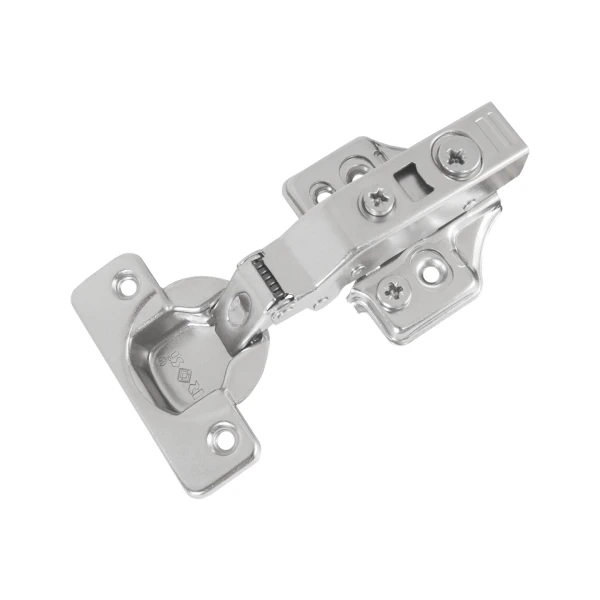

Hinge 110° 3D hinge with smooth action with small activation angle and clip
